Anker PowerExpand 9-in-1 USB-C PD Dock

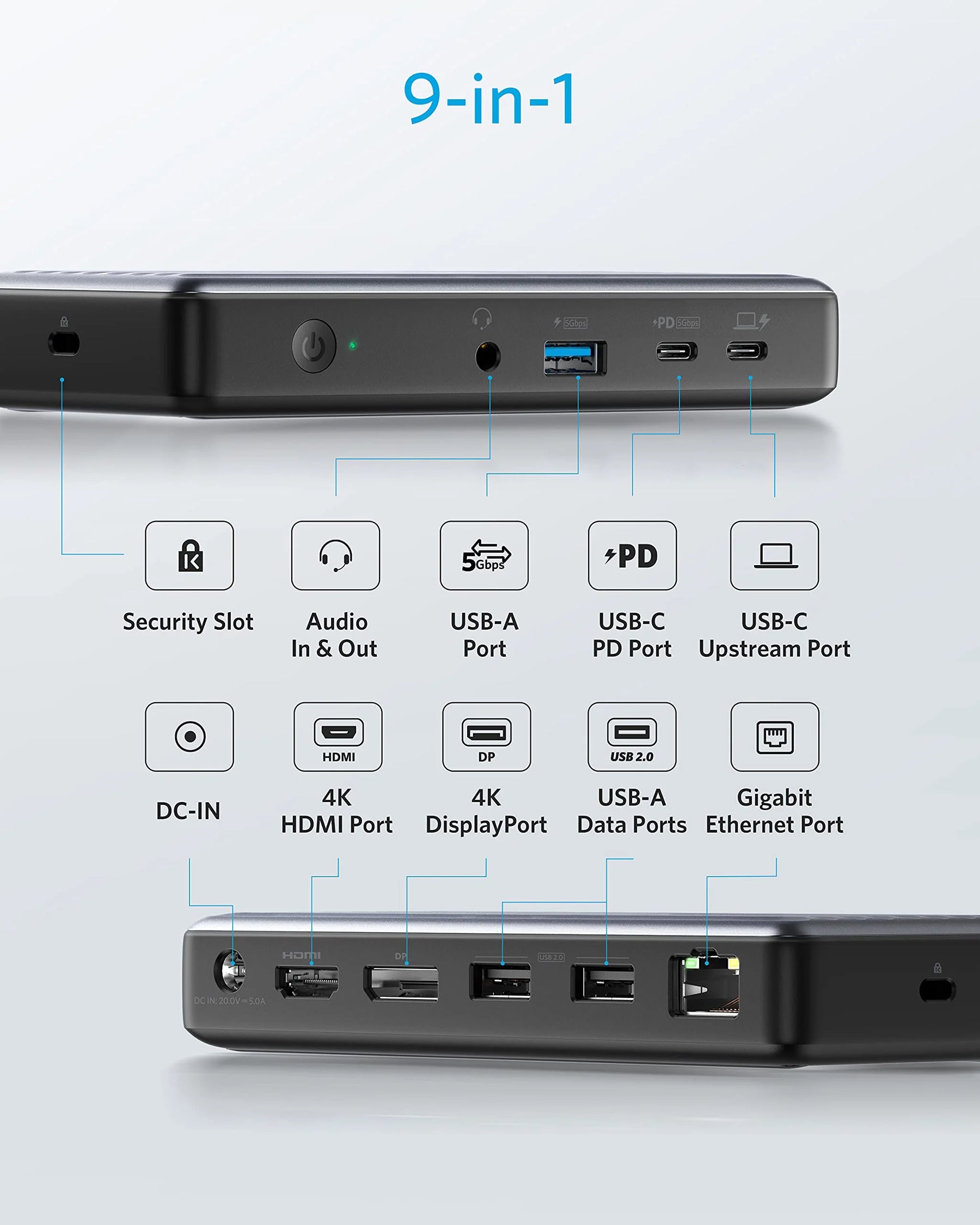

• Expanded Connectivity: Equipped with 2 USB-C Power Delivery ports, an HDMI port, a DisplayPort, 3 USB-A ports, an Ethernet port, and a 3.5 mm AUX input.

• Powerful Charging: Supports up to 60W charging for your laptop via the USB-C upstream port. You can also charge your phone or tablet via the 20W USB-C Power Delivery port.

• Dual Display: Simultaneously stream media to dual monitors in stunning 4K@30Hz via the DisplayPort and HDMI port.

• High-Speed File Transfer: Connect your thumb drive or external hard drive to either the USB-C Power Delivery port or the front-facing USB-A 3.0 port to transfer files at up to 5 Gbps.

Dimensions and Weight

Height: 145mm / 5.7 in

Width: 65 mm / 2.5 in

Depth: 24mm / 1.0 in

Weight: 188 g / 6.64 oz

The connected laptop must support Power Delivery and DisplayPort Alt Mode via the USB-C port.

To support single 4K@60Hz or dual 4K@30Hz display, your laptop must support DisplayPort 1.4.

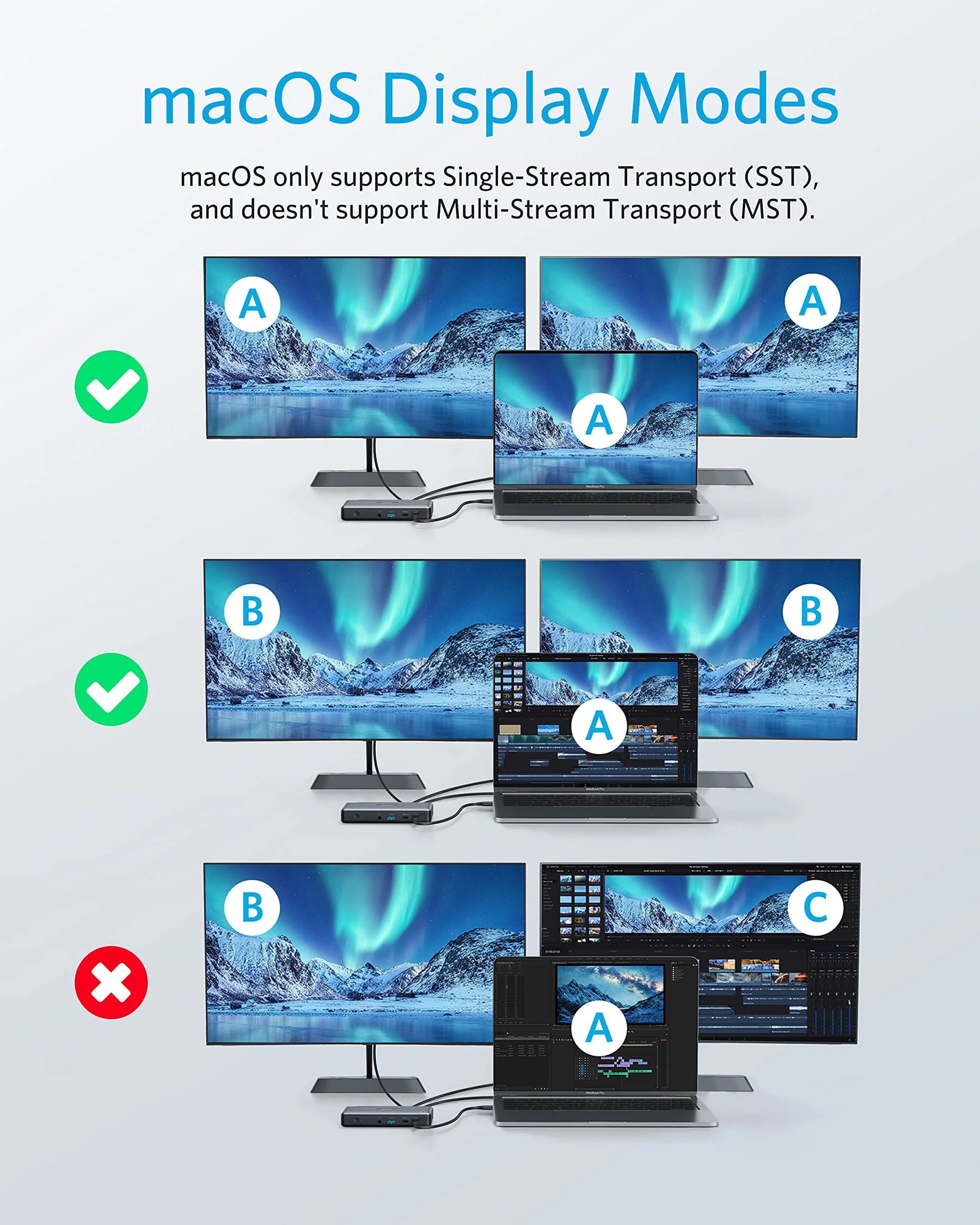

macOS only supports Single-Stream Transport (SST), and doesn't support Multi-Stream Transport (MST).

Q1: Will this dock work with any laptop? How do I make sure my laptop works with this dock？

A: This dock works with laptops with a USB-C port that supports DisplayPort Alt Mode and Power Delivery. To confirm the USB-C port function of your laptop, consult your user manual or contact your laptop’s manufacturer. If your USB-C port doesn’t support DisplayPort Alt Mode, you won’t receive video output. If your USB-C port doesn’t support Power Delivery, the dock will work correctly with video and data (including audio and Ethernet), but would not be able to supply charging to your laptop.

Q2: Do I need to install any drivers to use this dock?

A: No.

Q3: Can I use my own USB-C cable to connect the dock to my laptop?

A: We recommend that you use the 3.2 ft USB-C cable that comes with the dock, however any other USB-C cable with support for USB 3.1 Gen 2 and 100W Power Delivery should work.

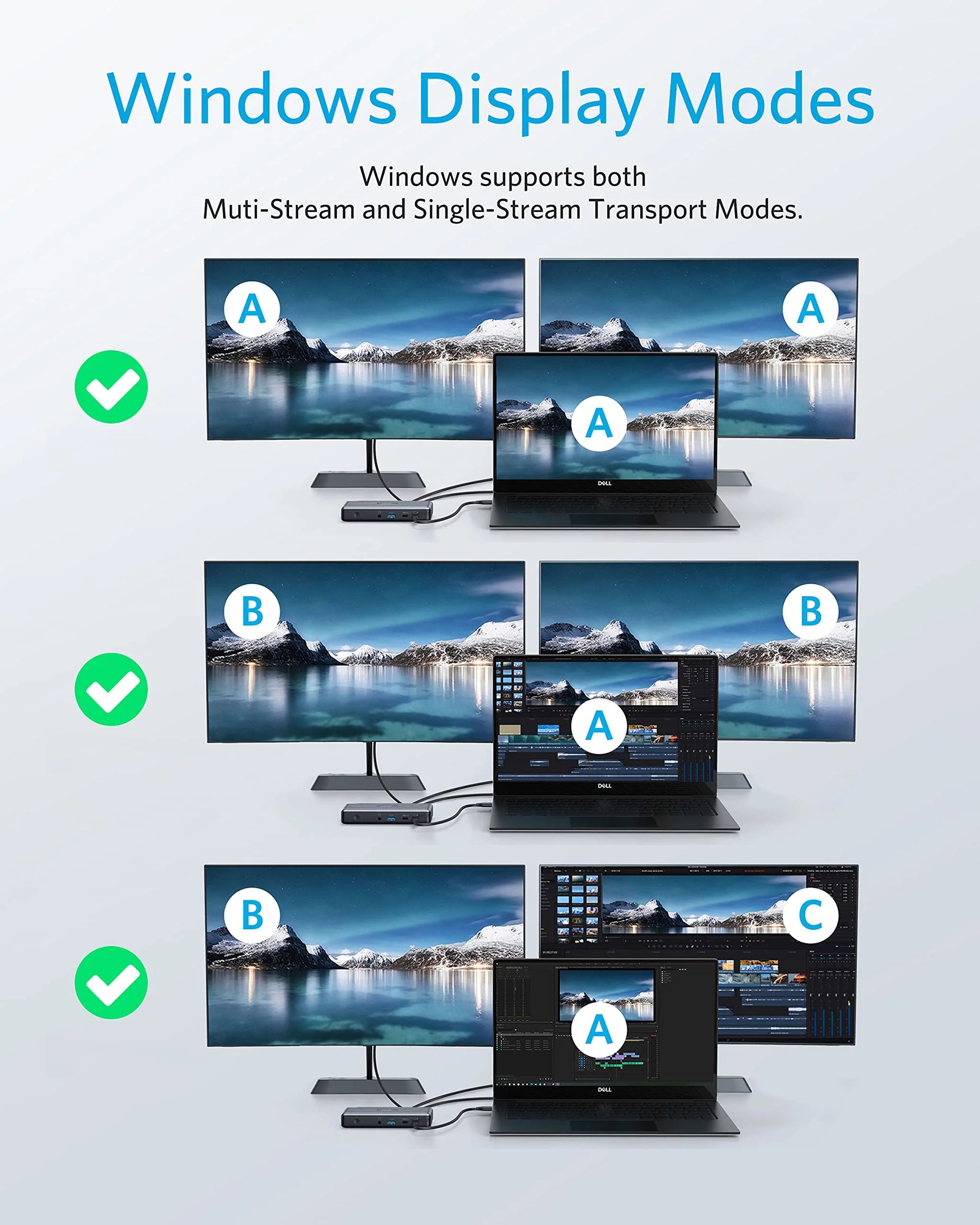

Q4: How many monitors does the dock support and what is the maximum resolution supported?

A: This dock supports connection to two external monitors: 1 via HDMI and 1 via DisplayPort.

Single Monitor Resolution: 4K@60Hz (for DisplayPort 1.4) or 4K@30Hz (for DisplayPort 1.2)

Dual Monitor Resolution: 2 x 4K@30Hz (for DisplayPort 1.4) or 2 x 1080p@60Hz (for DisplayPort 1.2).

macOS only supports Single-Stream Transport (SST), and doesn't support Multi-Stream Transport (MST)

Q5: The charging output of the dock is listed as 60W, which is lower than my laptop charger’s output. Will the dock still be able to power my laptop?

A: This dock supports up to 60W of charging via the USB-C upstream port on the front of the dock (indicated with a computer icon). It will charge slower than your laptop charger, but it will still charge at a relatively high speed.

Q6: How to deal with screen drop, black screen, or screen flickering issues when connecting to an external monitor?

A: After the dock has just been connected to the external monitor, it's normal for there to be some degree of flickering. It should go away in a little while. If you experience any screen issues after waking up your laptop, restart the dock; If your laptop or the docking station has not been shut down for a long time and you’re experiencing screen issues, please restart the dock.
